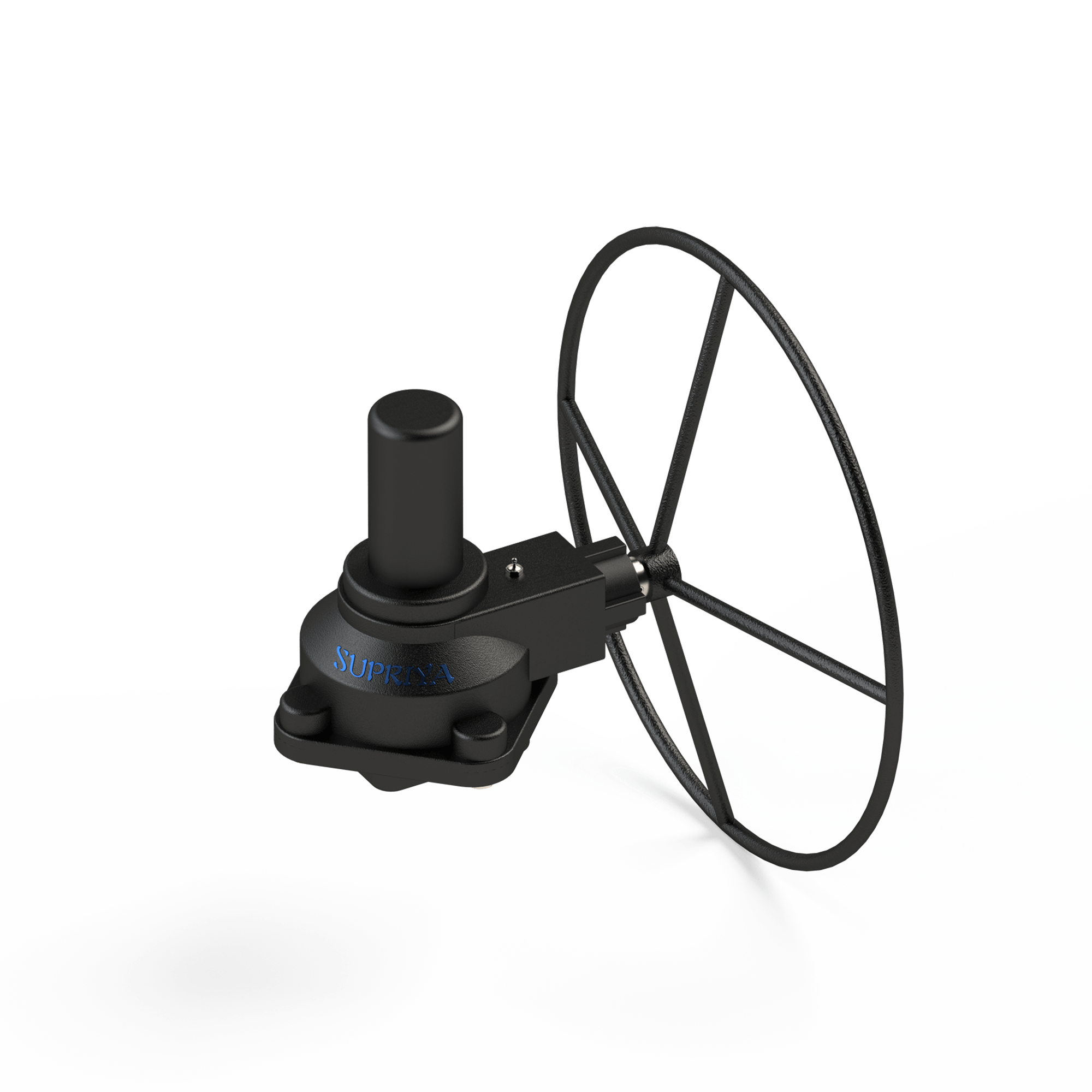

Multiturn Bevel Gear Boxes are used for valves requiring thrust and torque outputs such as, Globe, Sluice, Wedge Gate, Slide Gate and Knife Gate type valves utilizing manual drive, or electric motorized drive.
| Type | Bevel Single Reduction Gear Box |
| Series | B |
| Type | Bevel with Reduction Spur Gear Box |
| Series | BGT |
| Maximum Output Thrust | 2000kN |
| Maximum Output Torque | 20,000Nm |
| Temperature Range | minus (-) 10°C to +80°C |
| Input Drive Type | Manual Hand Wheel, Chain Wheel, Electric Input, Pneumatic Runner. |
| 1) | Special features such as limit switch mounting, padlock arrangement, chain wheel arrangement, indicator arrangement, etc. are available upon request. |
| 2) | Supriya Bevel Gear Box is available in Compact version and Thrust-Base Version. |
| 3) | Bevel gear Box ratios are carefully chosen to meet the manual rim effort requirements. |
| 4) | High Thrust Gear boxes are provided as combinations of Bevel Gear, Planetary Spur Gear and Inverted Spur Gear Combinations. |
| 5) | Twin shaft versions available on bevel gearboxes with single reduction and double reduction auxiliary spur gear boxes. |
| 6) | Extension shaft for buried service available. This is achieved by additional spur and bevel combinations for ‘top operating’ requirements. |
| 7) | Suitable for use in areas with Marine application (extremely high salinity), aggressive environments, etc. |
