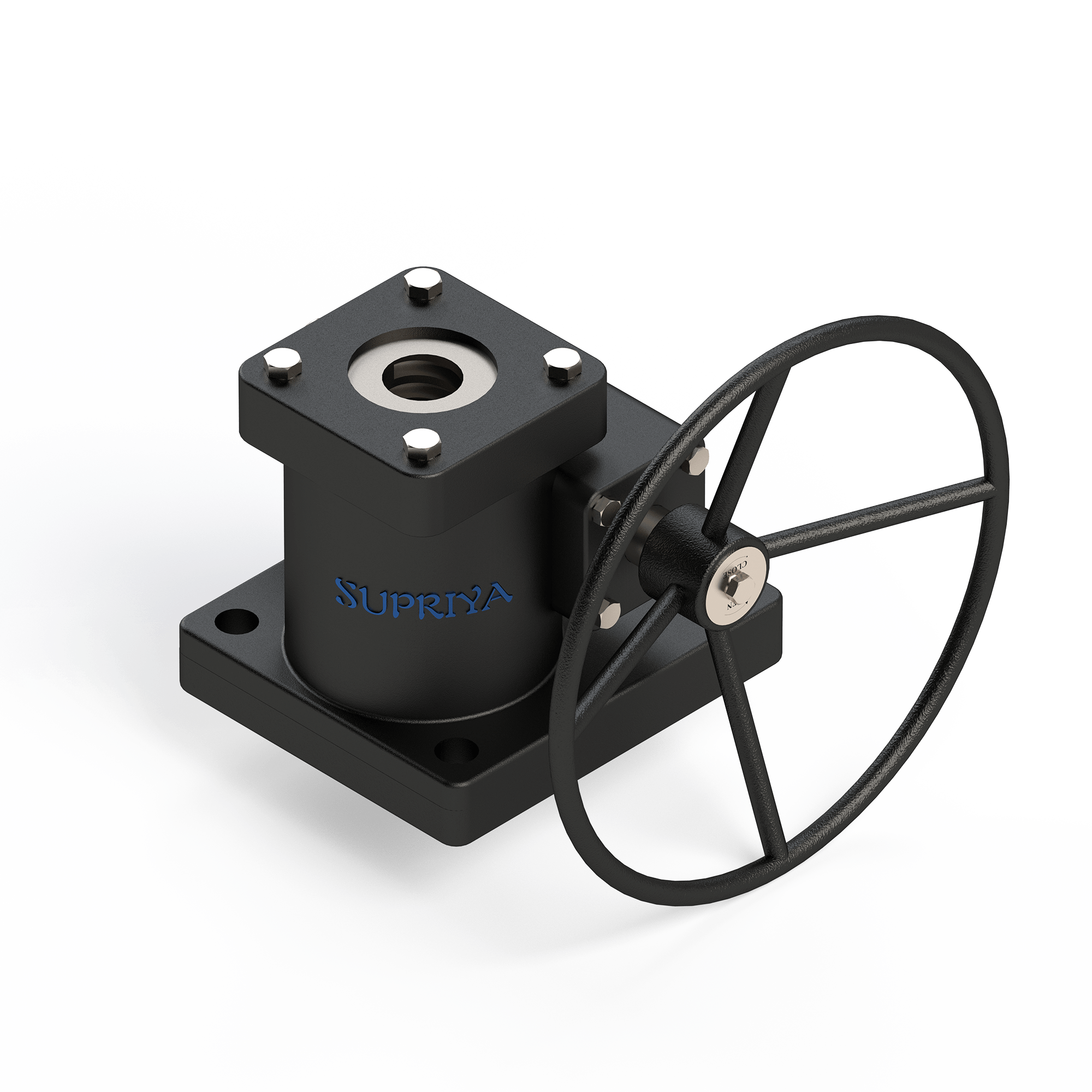

Jack Screw Worm Gear Box (J)

Jack Screw Worm Gear Boxes are predominantly used as manual overrides for Single Acting and Double Acting Linear Actuators. Jack Screw Worm Gear Boxes are also used for operation of any linear valve such as Wedge Gate, Globe, Sluice Valve, etc. utilizing manual drive, electric motorized drive or pneumatic drive.


SPECIFICATIONS


Type Jack Screw Worm Gear Box
Series J
Maximum Thrust 1000kN
Temperature Range minus (-)10°C to +80°C
Motion Type Travelling Screw
Shaft Input Single Input Shaft, Double Input Shaft, Flange Input
Input Drive Type Manual Hand Wheel, Chain Wheel, Electric Input, Pneumatic Runner.



FEATURES


  • Highly Rigid and Self-Locking Trapezoidal Screw.
  • Low speed, low frequency, mainly used for large load.
  • Jack Screw is incorporated with a rectangular key which engages in a precision keyway throughout the spindle length.
  • One significant benefit is the mechanical advantage, achieved through the internal gear ratio resulting in the ability to lift lower, push or pull a significant load with a relatively small amount of torque on the input shaft.
  • Standard housing material is Ductile Iron / Carbon Steel. Other material options are available.
  • Stainless Steel input shaft, fasteners, handwheel etc. available upon request.
  • Supriya Jack Screw Gear Box is fitted with high performance axial and radial thrust bearings.
  • Special features such as limit switch box, padlock arrangement, chain wheel arrangement, extension shaft for buried service, etc. are available.
  • Maintenance free, increased durability and Grease filled for life.
  • Supriya gear boxes are available with IP68, IP67 Ingress Protection certified.
  • Special Seals and grease are provided for severe service applications.
  • High temperature upto +200°C and Low temperature minus (-)52°C variants are available.


BENEFITS


1) Self-locking for standard single start lifting screw in the majority of non-vibrating operating conditions
2) Optionally, Double speed with two-start lifting screw can be provided.
3) Jack Screw Gear Box with Travelling Nut arrangement (Rotating screw with lifting nut) can be provided.
4) Special High efficiency and zero backlash gear boxes available.
5) Jack Screw Worm Gear Box can be provided with Tandem Spur Gear for Low effort operation.
6) No Standardized Stroke/Travel, All strokes are processed according to customers specific requirements.
