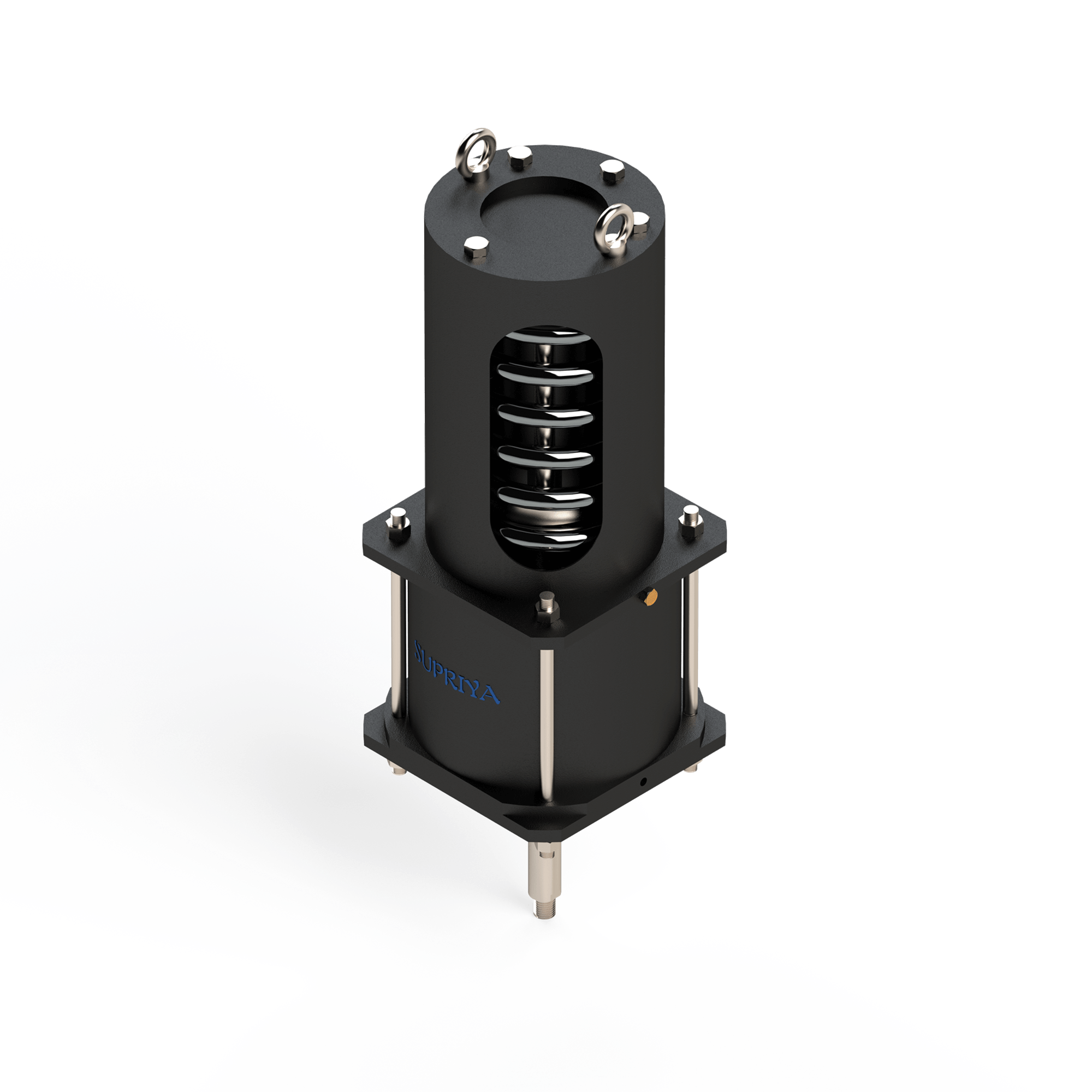

Single acting linear pneumatic actuators are used for on/off or modulating control of any knife gate, wedge gate, globe or pinch valve utilizing compressed air, natural gas or nitrogen for actuator supply.
| Type | Single Acting Spring Return Linear Cylinder - Fail Close |
| Series | FC* (*earlier referred as SBD) |
| Type | Single Acting Spring Return Linear Cylinder - Open Close |
| Series | SF |
| Maximum Operating Pressure | 7bar |
| Temperature Range | minus (-) 10°C to +80°C |
| Stroke Range | up to 500mm |
| Maximum Thrust | Spring Preload up to 300kN |
| Manual Override Options are available | a. Rack and Pinion |
| b. Top Screw | |
| c. Bevel Gear | |
| d. Jack Screw | |
| e. Hydraulic |
| 1) | Cylinder design uses less supply air than comparable diaphragm actuators. High-quality materials require little maintenance. There is no diaphragm to rupture. |
| 2) | Hydraulic Manual Override - Compact Type assembled within the spring assembly reduces the overall height by 33% |
| 3) | Periodic maintenance is easy to perform since the spring return actuator only requires the removal of three-four parts to access all internal parts. |
| 4) | A variety of positioner, instrumentation, controller options makes the spring return actuator ideal for a variety of process control applications. |
| 5) | Using standard O-rings and seals for both static and dynamic sealing makes Supriya spring return actuator soft parts lower cost and easier to find. |
| 6) | Our highly engineering springs with stronger materials and better surface treatment and finish provides exceptionally long fatigue life. |
| 7) | Our actuators are designed for 20years of service life. |
