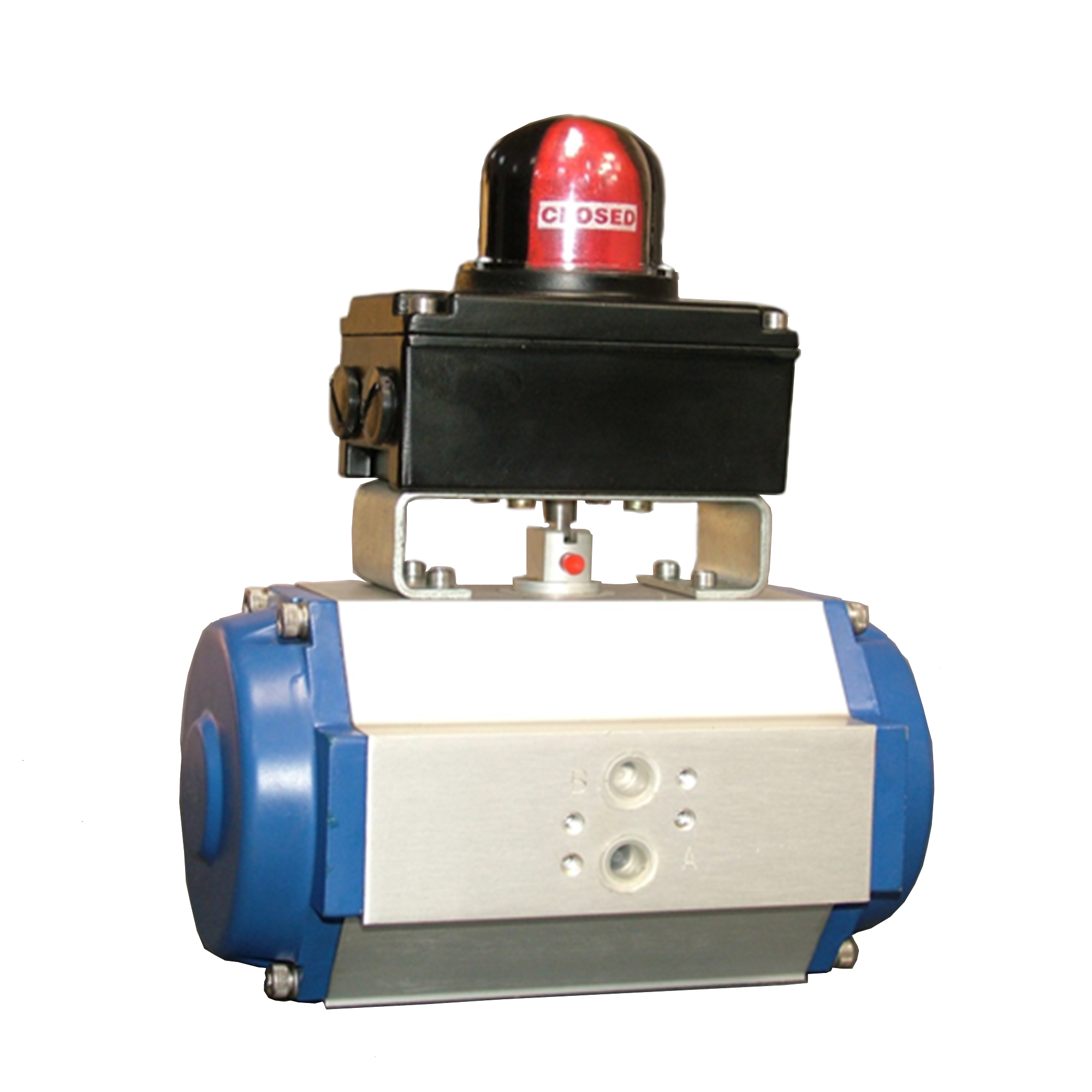

Rack and Pinion Actuator (RP)

Rotary Rack and Pinion Pneumatic actuators are used for on-off or modulating control of any ball, plug, or butterfly valve using compressed air, natural gas, or nitrogen actuator supply.


SPECIFICATIONS


Type Double Acting Rack and Pinion Actuator
Series RP
Type Single Acting Rack and Pinion Actuator
Series RP-SR
Maximum Operating Pressure 7bar
Temperature Range minus (-) 10°C to +80°C
Stroke Range minus (-) 5° to +95°
Maximum Torque up to 500Nm
Actuation Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
Control Type Throttling (Control Duty), On-Off Duty
Manual Override Options a. De-clutch Worm Gear
  b. Side Screw



FEATURES


  • Supriya actuators are modular in design with same body and cover for double acting and single acting spring return types.
  • Springs can be added in the field to convert double acting to single acting spring return or for changes in supply pressure.
  • Failure direction can be easily reversed from Fail Close to Fail Open or vice versa by inverting the pistons.
  • Valve mounting dimensions comply to ISO 5211 standard.
  • Namur VDI/VDE 3845 mounting options available on all sizes. Provision to mount solenoid valves, limit switches, positioners and other controllers is available.
  • Actuators with CE-marking are conforming to Directive PED 2014/68/EU.
  • Actuators are suitable for SIL-3 environments, Ingress Protection IP67 and IP68.

BENEFITS


1) All sliding and rotating parts are provided with bearings to ensure long life.
2) Actuator body inner diameter is honed and hard anodized for better surface strength and lower coefficient of friction.
3) Travel stoppers are provided in both the directions ensuring flexibility and accuracy to set the valve open and close positions.
4) Operator safety is ensured while disassembling spring return actuators with fasteners sized to release the preload completely.
5) Our actuators are designed for 20years of service life.
