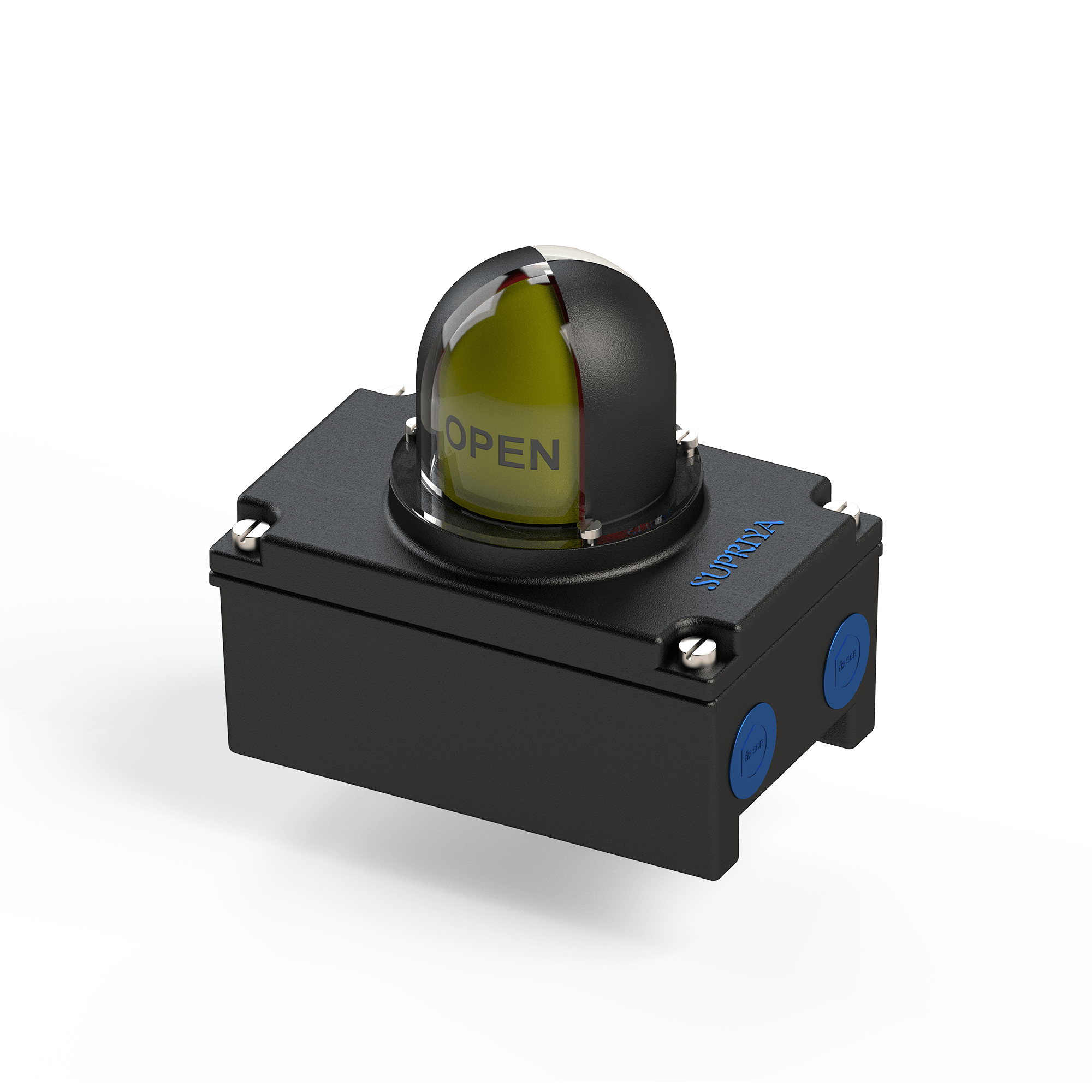

Limit Switch Box (W98/WT1)

Supriya Limit Switch Boxes provides visual and remote position feedback on automated valves. Designed to meet the service conditions of safe and hazardous areas, providing cost effective, accurate and reliable signal.


SPECIFICATIONS


Type Limit Switch Box Weather Proof
Configuration 1NO+1NC
Model W98
Type Limit Switch Box Weather Proof
Configuration 2NO+2NC
Model WT1
Material Aluminium Pressure Die Cast, Stainless Steel
Temperature Range minus (-)10°C to +80°C
Conduit Connection 1/2"NPT, 3/4"ET, M20
Protection Class IP65 / IP66



FEATURES


  • Enclosure is offered in aluminium or corrosion-resistant stainless steel, with multiple switch options.
  • Easily adaptable for all quarter turn pneumatic actuators.
  • Standard switch box is provided with two micro switches pre-wired to the terminal block.
  • Individually adjustable and quick set cams for Open/Close switch operations.
  • Mounting and drive shaft dimensions are according to DIN - Namur standards.
  • Optical quality polycarbonate position indicator dome to indicate valve position.
  • Limit switch boxes have a standard large two colour position indicator which is easily visible both from side and top of the valve
  • Position Transmitters option available with analog signal for valve position feedback.


BENEFITS


Supriya Prototech

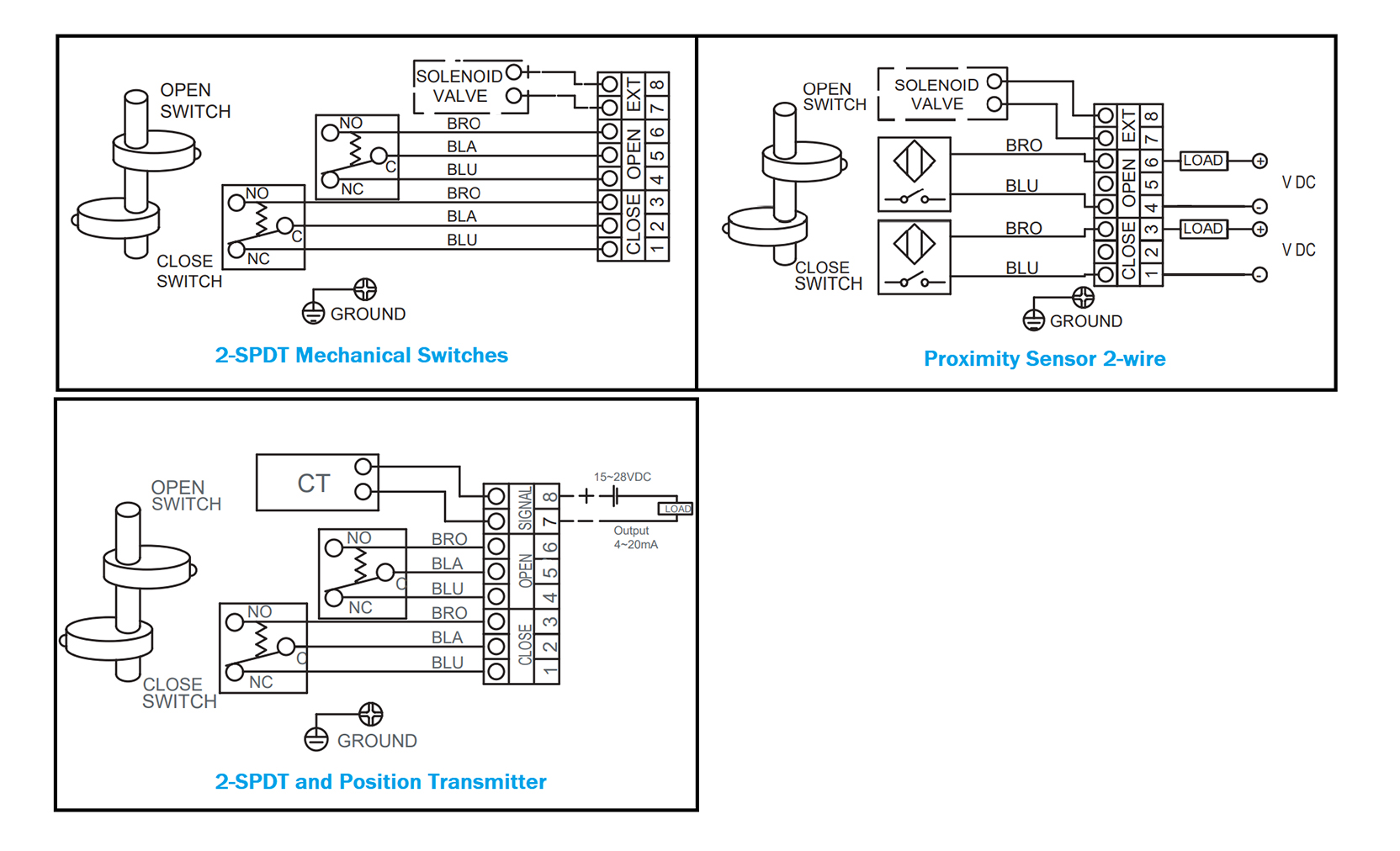

1) Switches mechanical type micro switches, reed type magnetic switches and proximity type inductive non-contact sensors options are available.
2) Standard and customized mounting options makes Supriya Limit Switches the preferred option. Mounting accessories are compatible with various actuator makes.
3) Special Rotary to Linear mounting kit option is available to suit for linear valve position feedback.
4) Solenoid Valve cable termination inside enclosure option is available.
5) Other protection class such as IP67, IP68, Explosion Proof, Intrinsic Safe Switches, etc. are available.
