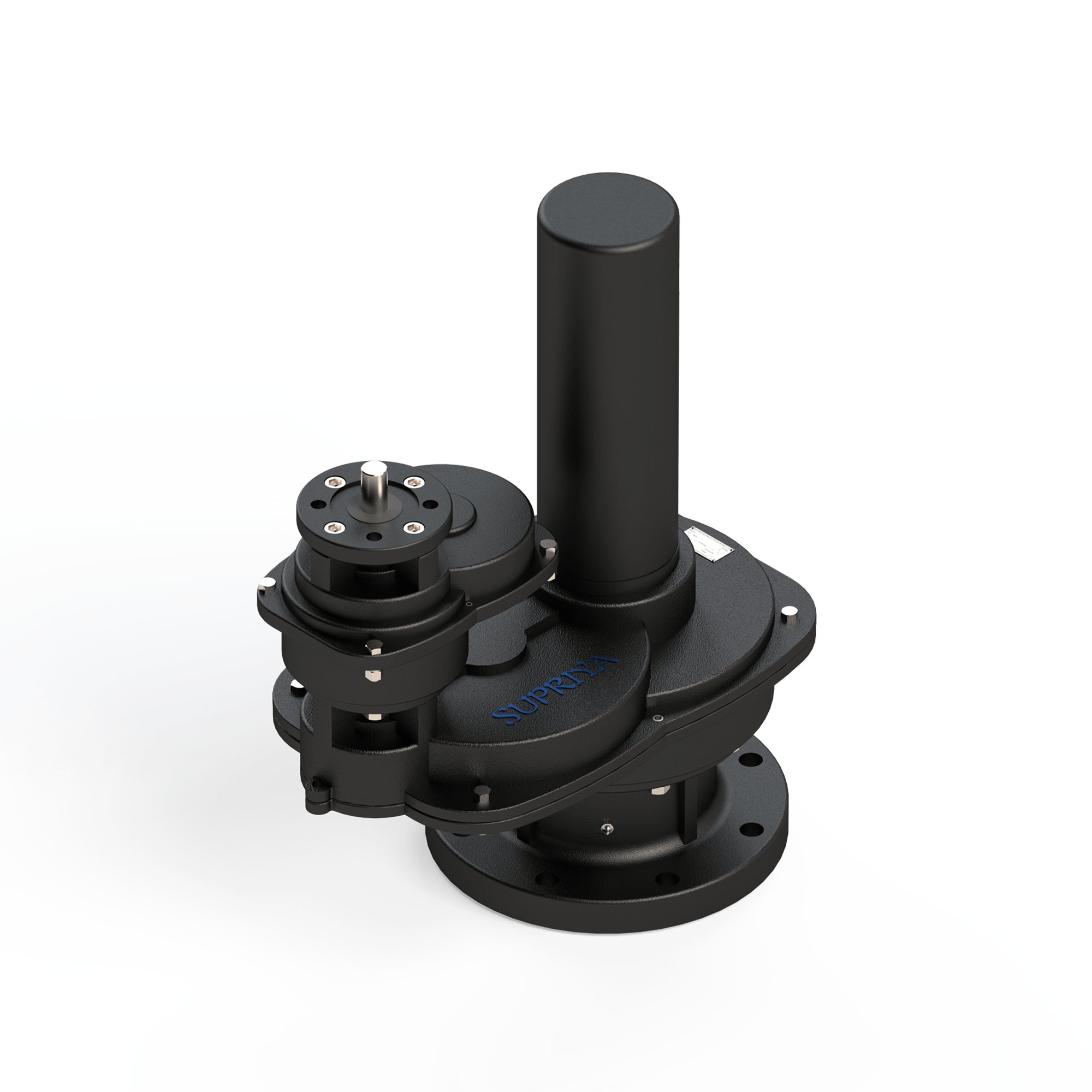

Spur Gear Boxes are used for control of any linear stem valve such as Wedge Gate Valve, Globe Valve or Knife Edge Gate Valve. Gear Box can be operated by manual hand wheel or electric actuator.
| Type | Spur Gear Box - A Base |
| Series | GH / GH-B |
| Maximum Operating Torque | 5000Nm |
| Maximum Thrust | 600kN |
| Temperature Range | minus (-) 10°C to +80°C |
| Stroke Range | minus (-) 5° to +95° |
| Input Drive Type | Manual Hand Wheel, Chain Wheel, Electric Input, Pneumatic Runner. |
| Construction | Inverted Spur |
| 1) | Supriya Spur Gear Boxes are known for the flexibility in customization for any ratio requirement. Gear Ratio and mechanical advantage plays a vital role in critically sizing the optimum size electric actuator thereby reducing the cost. |
| 2) | Gear boxes are compatible to AWWA C504, CE marked (Machinery Directive), API6D (Suitable) and IP68, IP67 Ingress Protection. |
| 3) | Supriya Gear Box is modular and can be fitted with tandem Spur Gear Box to achieve intended ratio. |
| 4) | Gear Box can also be provided with removable splined bushings between the gear drive and the valve shaft. |
| 5) | Twin Speed/Shaft gear box is available for reduced operating time by switching to lower ratio and thus higher mechanical advantage after unseating the valve. |
| 6) | Special arrangement with bevel gear mounted on the spur gear box can be provided to change the direction of handwheel rotation. |
