Rack and Pinion Manual Override integral to pneumatic linear cylinder is self-locking type, compact and efficient in operation. Multi-turn worm gearing attachment allows lesser effort to open/close the valve. Engage and Dis-engage mechanism allows the user to use override at any position.
Rack and Pinion Manual Override integral to pneumatic linear cylinder is self-locking type, compact and efficient in operation. Multi-turn worm gearing attachment allows lesser effort to open/close the valve. Engage and Dis-engage mechanism allows the user to use override at any position.

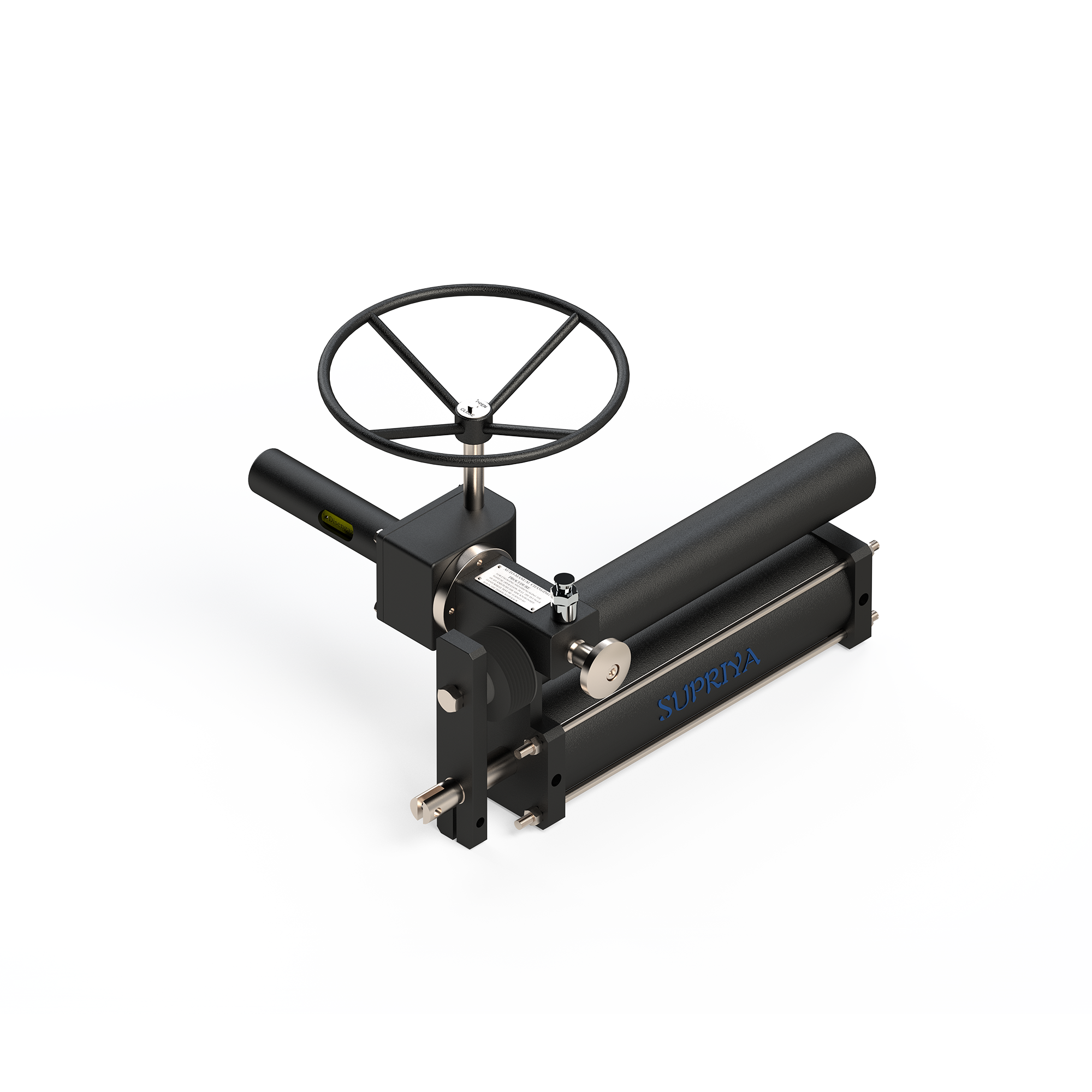

Supriya bevel gear boxes are compact type with built-in thrust base, side hand wheel type, mounted on single acting and double acting actuators. Bevel gear box will be coupled with spur reduction gear box for low effort operation for higher size actuators. For small stroke actuator auto engage and dis-engage mechanism is used; larger stroke actuator hardened-pin for engaging and disengaging the override.

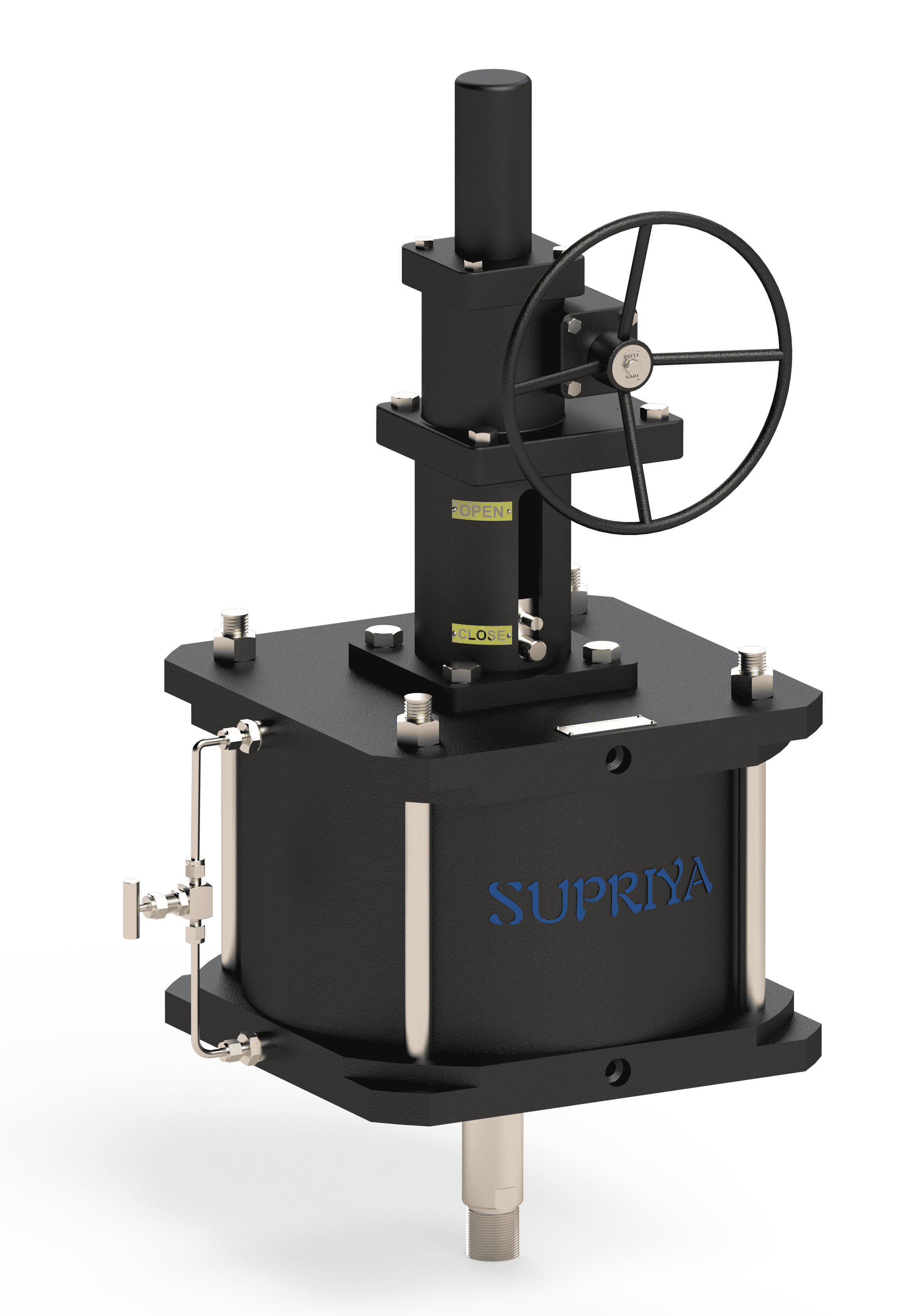

Supriya jackscrew manual override, side hand wheel type, is compatible for double acting and single acting actuator. Jackscrew is designed to withstand the forces produced without damage to itself or the actuator. Jack screw override is mounted on top of actuator or sandwich mounted between valve and actuator.
